DK_EDP_GW5ART-LV15MG132P_V1.0
Buy from our Distributors Contact GOWIN
DBUG1278-1.0E_DK_EDP_GW5ART-LV15MG132P_V1

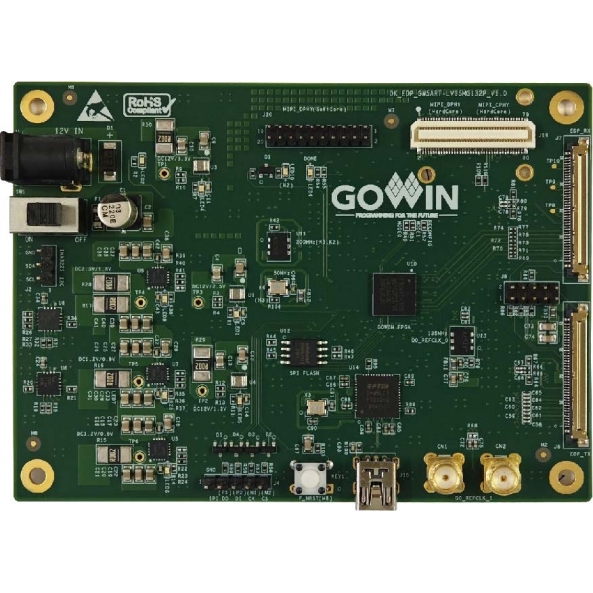

The DK_EDP_GW5ART-LV15MG132P_V1.0 is an embedded DisplayPort (eDP)–focused FPGA development board based on the GW5ART Arora FPGA, designed for MIPI camera connectivity and embedded display systems.

It integrates eDP, LVDS, and SPI interfaces, and supports MIPI C-PHY and MIPI D-PHY, providing a compact platform for evaluating camera-to-display pipelines and high-speed embedded FPGA designs.

Recommended Use:

Developing and validating embedded display systems using eDP and MIPI camera interfaces on a compact Arora FPGA platform.

Best For:

  • Embedded DisplayPort (eDP) interface evaluation
  • MIPI C-PHY / D-PHY camera connectivity
  • LVDS-based embedded displays
  • Camera-to-display pipelines in embedded systems
  • FPGA functional verification and debugging
Documents Download
Schematic DK_EDP_GW5ART-LV15MG132P_V1.0 SCH Download
User Guide DK_EDP_GW5ART-LV15MG132P_V1.0 Development Board User Guide Download
Contact Sample
