DK_START_GW1N-LV4LQ144C6I5_V1.1

Previous Name: DK-START-GW1N4

DK_START_GW1N-LV4LQ144C6I5_V1.1

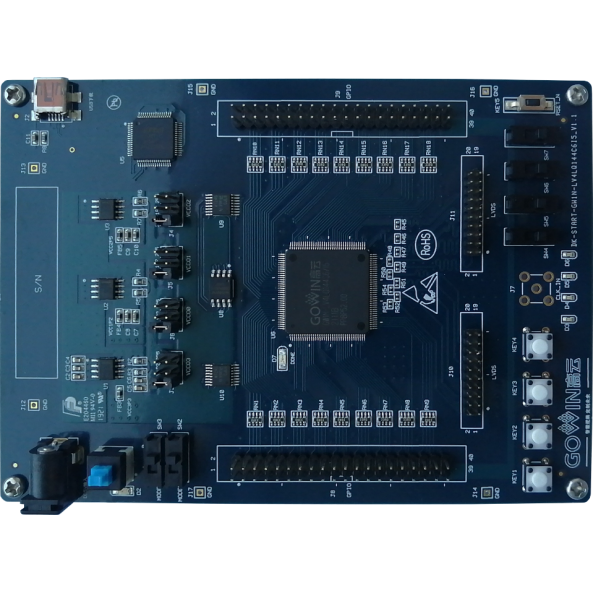

DK_START_GW1N-LV4LQ144C6I5_V1.1 development board adopts GOWIN LittleBeeTM FPGA family products, with features of low-power, instant start-up, high security, low cost, easy extension, which can effectively reduce the learning cost and help users quickly access to the design and development of programmable logic devices.



Integrated with two GPIO ports and two LVDS ports, DK_START_GW1N-LV4LQ144C6I5_V1.1 development board provides a hardware evaluation and test platform with high-integration and stable operation performance via flexible VCCO regulation (3.3V, 2.5V, and 1.2V). In addition, the development board also offers a slide switch, key switch, clock, LED, etc, which can be used by developers or hobbyists.



With abundant GPIO resources, the development board can be used as the main board to design image-sampling systems and the other related systems by combining with video daughter boards; system design of motion control can be achieved by combining with AD/DA industrial daughter boards; human-computer interface and image processing can be realized by combining with display daughter board.





Documents Download
Schematic DK_START_GW1N-LV4LQ144C6I5_V1.1_schematic Download
Schematic Gowin Minimum FPGA System SCH Download
BSDL BSDL Download
SCH Symbol Gowin FPGA SCH Symbol Download
User Guide DK_START_GW1N-LV4LQ144C6I5_V1.1 Development Board User Guide Download
