EPM11
Product Description

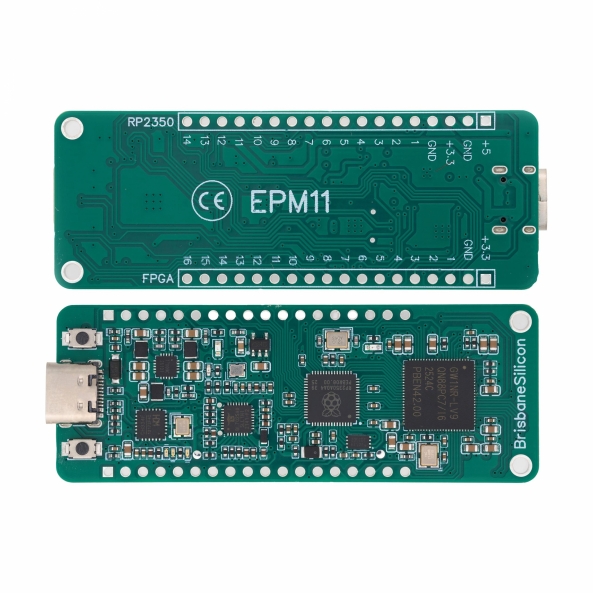

The EPM11 is an MCU-FPGA development board. Key hardware features include:
- RP2350 Microcontroller
- I/O bus connection to the FPGA.
- GOWIN GW1NR-9 FPGA.
- 8MB internal PSRAM.
- Internal bitstream Flash with AUTO BOOT.
- Non-volatile memory.
- 4 MB User Flash.
- Peripherals
- RP2350
- 8 x GPIO.
- 4 x ADC.
- 1 x LED.
- FPGA
- 16 x GPIO.
- 1 x LED.
- 2 x Pushbuttons.
- RP2350
- USB-C connector
- UART over USB (Thonny)
- JTAG over USB
- 1 x Power LED.
- 3.3V and 5V rails.
- No Back Side Components (one connector).
Key software features include:
- EPM11-MCU example project.
- Includes a Micropython Native Machine Code module for ‘out of the box’ communication with the FPGA.
- Includes a custom Pin and ADC mapping.
- EPM11-FPGA example project.
- Includes a guided setup of the FPGA build prerequisites and environment.
- Includes a CPU interface module.
- Provides an example of building and probing an fpgacapZero Embedded Logic Analyzer (ELA).
- Extensible, i.e. user can add their own application specific RTL modules.
- Simple build and program workflow stages.
- Fully scripted workflow – no GUI-based programs are required.
Learn more about the EMP11 and check out purchase options here:
https://brisbanesilicon.com.au/epm11/
Documents Download
| Data Sheet | EPM11 Data Sheet | Download |
