BRS-100-GW1NR9
cover_photo

Product Description

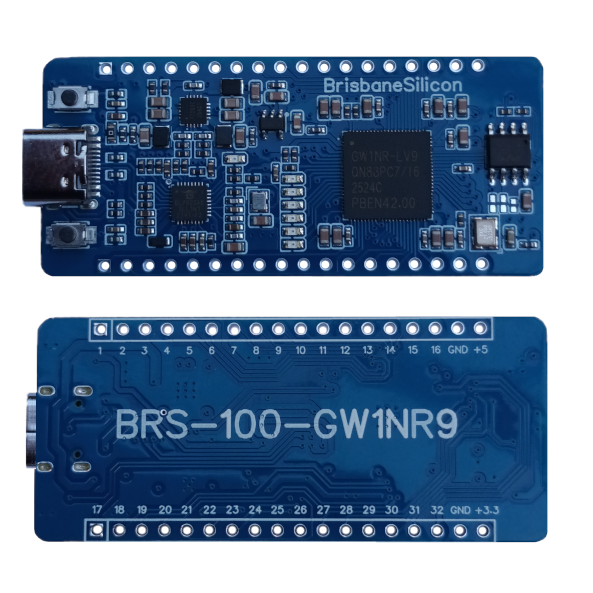

The BRS-100-GW1NR9 is a FPGA development board. Key features include:

  • GOWIN GW1NR-9 FPGA.
    • 8MB internal PSRAM.
    • Internal bitstream Flash with AUTO BOOT.
  • Non-volatile memory.
    • 8 MB User Flash.
  • Peripherals
    • 16 x User GPIO.
    • 6 x User LED.
    • 2 x User Pushbuttons.
  • USB-C connector
    • UART over USB (FTDI)
    • JTAG over USB
  • 1 x Power LED.
  • 3.3V and 5V rails.
  • Example project with a fully scripted workflow.
    • Includes a guided setup of the build prerequisites and environment.
    • Demonstrates board features (PSRAM, Flash, Peripherals etc).
    • Extensible, i.e. user can add their own application specific RTL modules.
    • No GUI-based program required.
    • Simple build and program workflow stages.



Example Project

The example project on Github provides a great overview of setting up the build prerequisites and environment, as well as building and programming the example project to the board.

Documents Download
Data Sheet BRS-100-GW1NR9 Datasheet Download
Contact Sample
