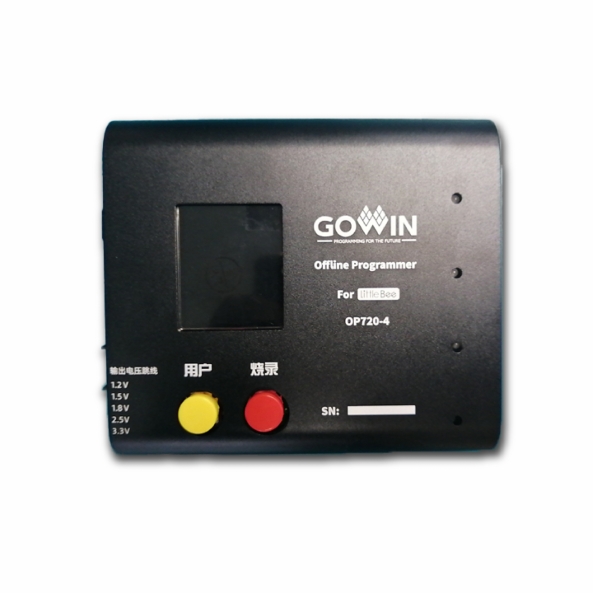

OL-Programmer-A_V3.0 (4 channel offline programmer)
Gowin USB download cable is mainly used to download the bit stream file generated by Gowin software to Gowin FPGA chip or external storage device.
Features
- Support Windows and Linux operating systems;
- Support all series of Gowin FPGA products;
- Download the bitstream file of the internal SRAM, on-chip Flash, and off-chip Flash via JTAG.
- The USB interface supports USB1.0, USB2.0;
- The USB interface supports DC +5V power supply;
- The JTAG interface supports 1.2V~3.3V programming download;
- The Max. speed can be up to 30Mbps for the JTAG interface.
- LED power supply, download instructions;
- Conform to RoHS standard.
Documents Download
| Download tool | Gowin FPGA Offline Programmer User Guide | Download |
| Download Tool | PC Opmanager | Download |
| Download tool | Offline Programmer Firmware | Download |
| Download tool | Offline Programmer Firmware_Auto | Download |
| Download tool | Gowin FPGA Quad JTAG Interfaces Offline Programmer(OP720-4) | Download |
| BSDL | BSDL | Download |
| Schematic | Gowin Minimum FPGA System SCH | Download |
| SCH Symbol | Gowin FPGA SCH Symbol | Download |
