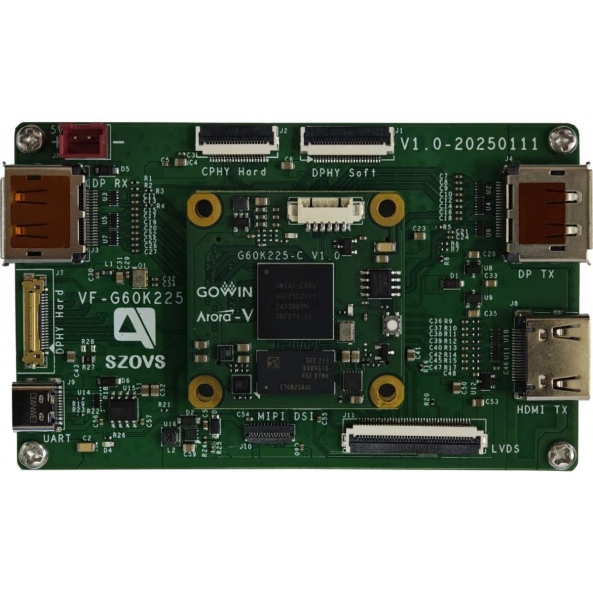

DK_VIDEO_GW5AT-LV60UG225_V1.0
The DK_VIDEO_GW5AT-LV60UG225_V1.0 is a video-focused FPGA development board based on the GW5AT Arora V FPGA, designed for high-speed memory access, video processing, and multi-protocol display interfaces.
It integrates DDR3 memory, SerDes, and a comprehensive set of video and camera interfaces, including LVDS, DisplayPort, HDMI, MIPI C-PHY, MIPI D-PHY, and MIPI D-PHY DSI, enabling efficient evaluation of complex video pipelines and high-speed communication systems.
Recommended Use:
Developing and validating high-speed video systems that require DDR3 memory and support for multiple MIPI, HDMI, and DisplayPort interfaces.
Best For:
- Video processing and display bridging
- MIPI C-PHY / D-PHY / DSI evaluation
- HDMI and DisplayPort interface development
- DDR3- and SerDes-based high-bandwidth systems
- FPGA functional verification and debugging
|
FPGA Resources |
|
|
Device |
GW5AT- LV60UG225 |
|
LUT4 |
59904 |
|
Flip-Flop (REG) |
59904 |
|
Shadow Static Random Access Memory SSRAM(Kb) |
468 |
|
Block Static Random Access Memory BSRAM(Kb) |
2124 |
|
Single PSRAM (bits) |
118 |
|
DSP |
118 |
|
Maximum phase locked loop (PLLs) |
8 |
|
Transceivers |
4 X 10.3125 Gbps |
|
LVDS(Gbps) |
1.25 |
|
MIPI D-PHY hardcore |
2.5Gbps (RX/TX) 4 data lanes 1 clock lane |
|
MIPI C-PHY hardcore |
2.5Gsps (=5.75Gbps,RX/TX)， 3-trios data lanes |
|
Interface & Function |
|
|
Memory |
64Mbit Nor Flash |
|
4Gbit DDR3 SDRAM |
|
|
Clock |
25MHz system clock |
|
135MHZ differential clock |
|
|
HDMI Interface |
1-lane HDMI 1.4 display interface, 1920*1080P@60Hz |
|
DP Interface |
1-lane DP input, 1920*1080@60Hz |
|
1-lane DP input, 1920*1080@60Hz |
|
|
LVDS Interface |
1-lane LVDS LCD interface |
|
MIPI Interface |
1-lane MIPI CPHY hard core, 2.5 Gsps per lane |
|
1-lane MIPI DPHY hard core, 2.5 Gbps per lane |
|
|
1-lane MIPI DPHY soft core, 2.0 Gbps per lane |
|
|
1-lane MIPI DSI interface |
|
|
UART Interface |
1-lane USB serial port |
|
Power |
|
|
Power-supply |
DC 5V 2A (powered by Type-C or ZH2.54-2P pin header) |
|
Dimension |
|
|
Core Board Dimension |
38mm x 38mm |
|
Carrier Board Dimension |
100mm x 62mm |
|
Environmental Specification |
|
|
Operating Temperature |
-40°C~85°C |
Documents Download
| Schematic | DK_VIDEO_GW5AT-LV60UG225_V1.0 Core Board SCH | Download |
| Schematic | DK_VIDEO_GW5AT-LV60UG225_V1.0 Carrier Board SCH | Download |
| User Guide | DK_VIDEO_GW5AT-LV60UG225_V1.0 Development Board User Guide | Download |
| User Guide | DK_VIDEO_GW5AT-LV60UG225_V1.0 Development Board Demo User Guide | Download |
