DK_USB_GW5AT-LV60UG225_V1.0
Buy from our Distributors Contact GOWIN

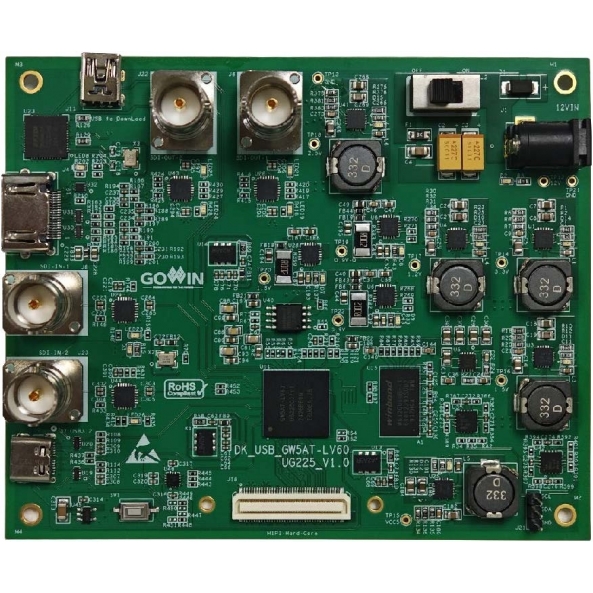

DBUG1280-1.0E_DK_USB_GW5AT-LV60UG225_V1

The DK_USB_GW5AT-LV60UG225_V1.0 is a high-speed interface and video development board based on the GW5AT Arora V FPGA, designed for DDR3 memory access and multi-protocol video and camera interface evaluation.

It integrates DDR3 support, SerDes, and key interfaces, including SDI-IN/OUT, MIPI C-PHY, MIPI D-PHY, HDMI, and USB Type-C, providing a compact platform for validating high-speed video transport, camera connectivity, and FPGA-based interface designs.

Recommended Use:

Evaluating DDR3-based systems and high-speed interfaces such as MIPI, SDI, HDMI, and USB 3.0 on an Arora V FPGA platform.

Best For:

  • MIPI C-PHY / D-PHY interface evaluation
  • USB 3.0 development via Type-C
  • 3G / 6G SDI video transmission and processing
  • HDMI-based video systems
  • FPGA functional verification and debugging
Documents Download
User Guide DK_USB_GW5AT-LV60UG225_V1.0 Development Board User Guide Download
Schematic DK_USB_GW5AT-LV60UG225_V1.0 SCH Download
Contact Sample
