DK_EDP_GW5AT-LV15MG132_V1.0
Buy from our Distributors Contact GOWIN
DBUG1277-1.0E_DK_EDP_GW5AT-LV15MG132_V1

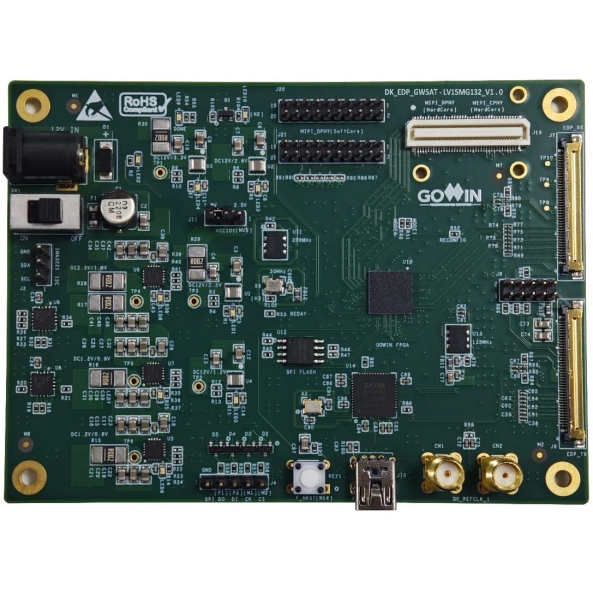

The DK_EDP_GW5AT-LV15MG132_V1.0 is an embedded DisplayPort (eDP)–focused FPGA development board based on the GW5AT Arora V FPGA, designed for MIPI camera connectivity and embedded display applications.

It integrates eDP, LVDS, and SPI interfaces, and supports MIPI C-PHY and MIPI D-PHY, providing a compact platform for evaluating embedded display pipelines, camera interfaces, and high-speed FPGA I/O.

Recommended Use:

Evaluating embedded DisplayPort (eDP) display systems and MIPI camera interfaces on a compact Arora V FPGA platform.

Best For:

  • Embedded DisplayPort (eDP) interface evaluation
  • MIPI C-PHY / D-PHY camera connectivity
  • LVDS-based display systems
  • Embedded display and vision applications
  • FPGA functional verification and debugging




Documents Download
Schematic DK_EDP_GW5AT-LV15MG132_V1.0 SCH Download
User Guide DK_EDP_GW5AT-LV15MG132_V1.0 Development Board User Guide Download
Contact Sample
