DK_DP_GW5AT-LV60UG225_V1.0
Buy from our Distributors Contact GOWIN
DBUG1274-1.0E_DK_DP_GW5AT-LV60UG225_V1

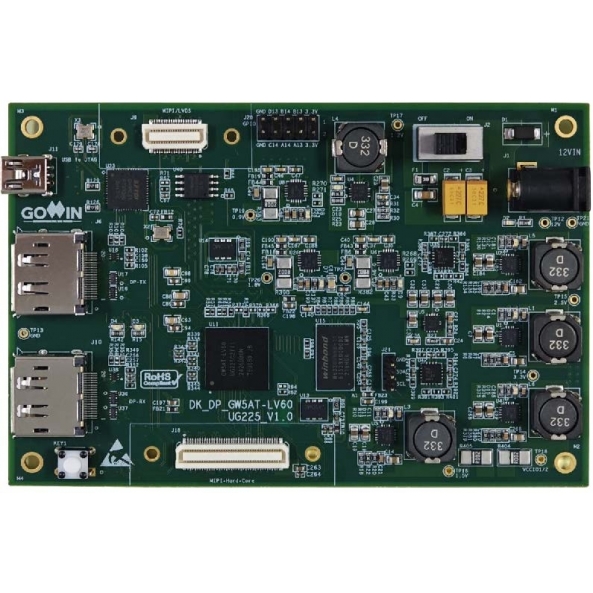

The DK_DP_GW5AT-LV60UG225_V1.0 is a DisplayPort-focused FPGA development board based on the GW5AT Arora V FPGA, designed for high-speed display and camera interface evaluation, as well as DDR3 memory access.

It integrates DDR3 support and key interfaces, including DisplayPort RX/TX, MIPI C-PHY, MIPI D-PHY, and GPIO, providing a focused platform for validating display pipelines, camera connectivity, and high-speed FPGA-based systems.

Recommended Use:

Evaluating DisplayPort-based video systems and MIPI camera interfaces that require high-speed DDR3 memory access on an Arora V FPGA platform.

Best For:

  • DisplayPort RX/TX interface evaluation
  • MIPI C-PHY / D-PHY camera and display connectivity
  • DDR3-based high-bandwidth video systems
  • FPGA functional verification and debugging
Documents Download
Schematic DK_DP_GW5AT-LV60UG225_V1.0 SCH Download
User Guide DK_DP_GW5AT-LV60UG225_V1.0 Development Board User Guide Download
