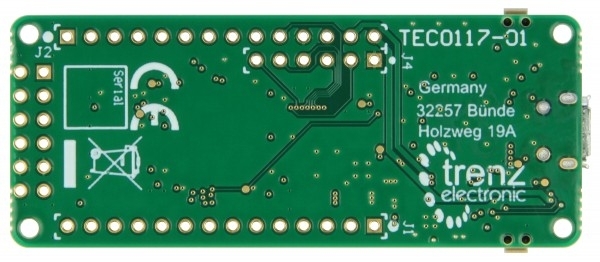

TEC0117
Purchase from Trenz Electronic at:

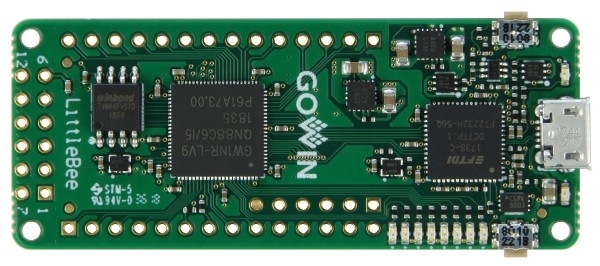

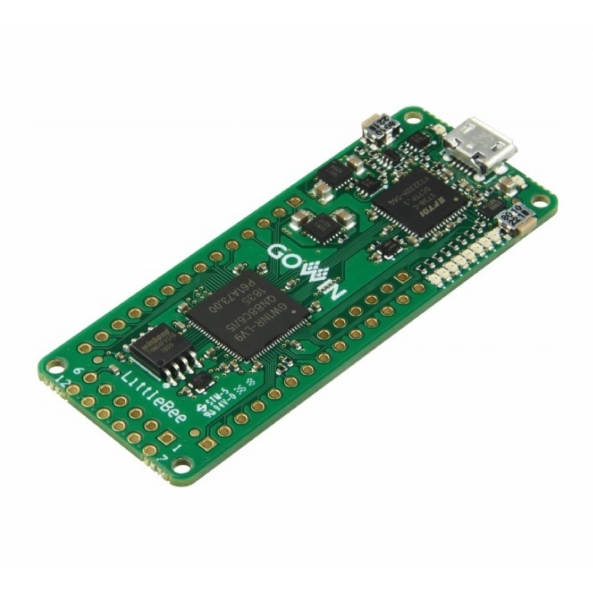

The TEC0117 is a low cost FPGA module integrating a GOWIN LittleBee 1NR9 FPGA with 8 MByte internal SDRAM and 8 MByte SPI Flash for user applications. It's compatible to the Arduino MKR standard.
Key Features
- GOWIN LittleBee 1NR9 FPGA
- 8 MByte internal SDRAM
- 8 MByte SPI Flash for user applications
- JTAG and UART over Micro USB2 connector
- 1 x 6-pin header for JTAG access to FPGA SoC
- 1 x Pmod header providing 8 I/O
- 2 x 14-pin headers (2,54 mm pitch) providing 22 I/O
- 8 x user LEDs
- 1 x user push button
- 100 MHz user clock (MEMS oscillator)
- 5.0V single power supply with on-board voltage regulators
- Size: 61.5 x 25 mm
