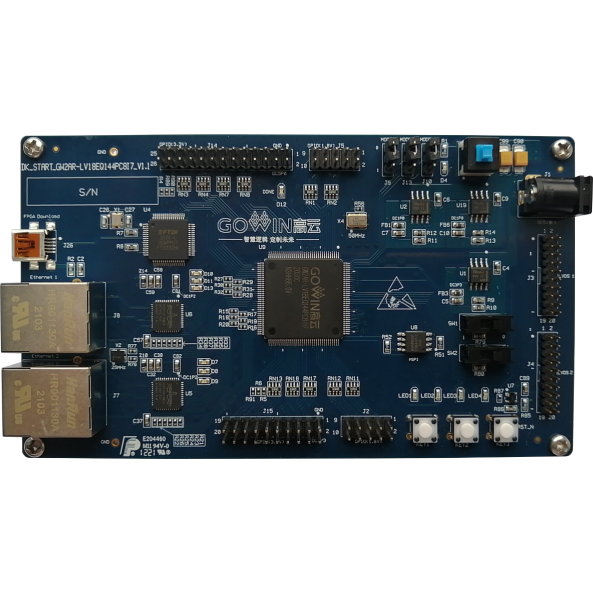

DK_START_GW2AR-LV18EQ144PC8I7_V1.1

Previous Name: DK-START-GW2AR18 V1.1

GW2AR-LV18EQ144PC8I7

The DK_START_GW2AR-LV18EQ144PC8I7_V1.1 is a starter-to-intermediate FPGA development board based on the GW2AR Arora FPGA, which integrates 64 Mbit of on-chip PSRAM in a single SiP device.

It provides LVDS and GPIO interfaces, along with onboard switches, LEDs, clock, and reset, making it a practical platform for evaluating memory-enabled FPGA designs, high-speed I/O, and system-level prototyping without the need for external DRAM.



Recommended Use:

Developing and validating FPGA designs that benefit from integrated PSRAM for data buffering, control logic, and high-speed LVDS interfaces.

Best For:

  • FPGA designs using integrated PSRAM (SiP)
  • LVDS-based high-speed interfaces
  • Entry-to-mid-level FPGA prototyping
  • Memory-enabled embedded systems
  • Hardware validation and functional debugging
ドキュメントをダウンロード
Schematic DK_START_GW2AR-LV18EQ144PC8I7_V1.1 SCH ダウンロード
User Guide DK_START_GW2AR-LV18EQ144PC8I7_V1.1 Development Board User Guide ダウンロード
