DK_START_GW2A-LV55PG484C8I7_V1.3

Previous Name: DK-START-GW2A55-PG484 V1.3

DK_START_GW2A-LV55PG484C8I7_V1.3

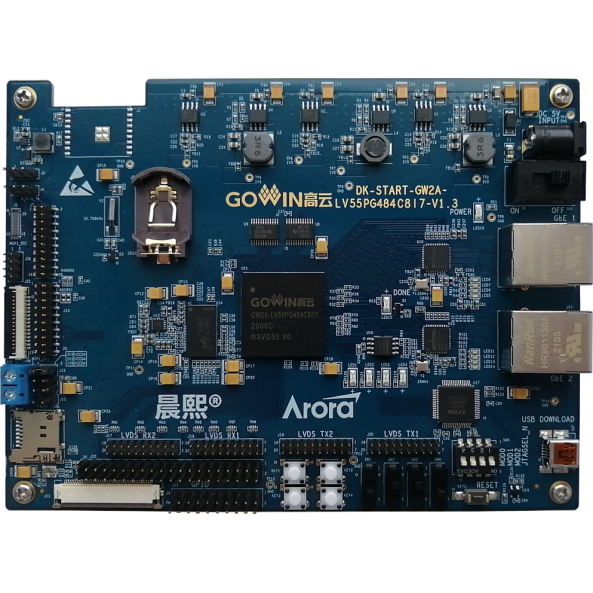

The DK_START_GW2A-LV55PG484C8I7_V1.3 is a high-performance FPGA development board based on the GW2A Arora FPGA, designed for DDR3-based data storage, high-speed communication, and advanced system evaluation.

It integrates 2 Gbit DDR3 memory, dual Gigabit Ethernet, and a wide range of interfaces, including MIPI CSI/DSI, LVDS, CAN, SD card, AD/DA, and GPIO, along with an RTC module and external Flash, switches, and LEDs, making it a versatile platform for networking, video, and mixed-signal FPGA applications.

Recommended Use:

Developing and validating high-speed FPGA systems that require DDR3 memory, Gigabit Ethernet, and multiple video, communication, and control interfaces.

Best For:

  • DDR3-based high-bandwidth FPGA designs
  • Gigabit Ethernet communication and testing
  • MIPI CSI / DSI camera and display evaluation
  • Mixed-signal systems using AD/DA interfaces
  • FPGA functional evaluation and system debugging
ドキュメントをダウンロード
BSDL BSDL ダウンロード
Schematic Gowin FPGA最小システム回路図 ダウンロード
SCH Symbol 回路図ライブラリ ダウンロード
Schematic DK_START_GW2A-LV55PG484C8I7_V1.3 Schematic ダウンロード
User Guide DK_START_GW2A-LV55PG484C8I7_V1.3開発ボード ユーザーガイド ダウンロード
お問い合わせ サンプル
