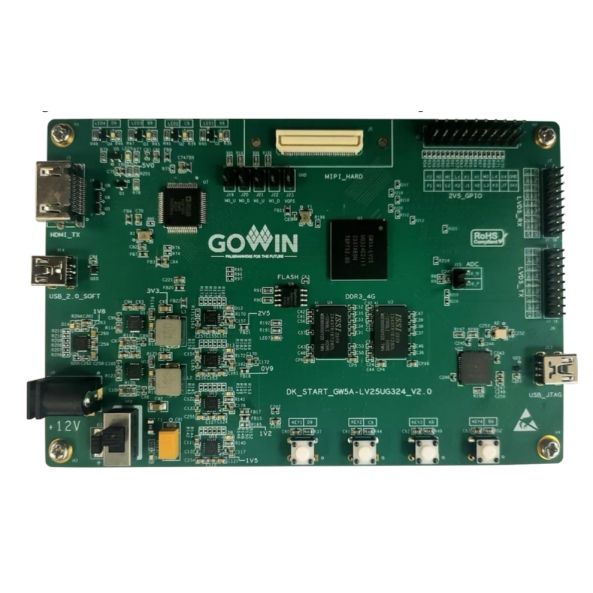

DK_START_GW5A-LV25UG324_V2.0
IMG_6726

The DK_START_GW5A-LV25UG324_V2.0 is a high-speed FPGA development board designed for DDR3 memory access and multi-interface system evaluation, including video, data acquisition, and high-speed I/O.

It supports DDR3 storage, MIPI and LVDS communication, HDMI transmission, USB 2.0, and ADC interfacing, providing a versatile platform for validating mixed-interface FPGA designs, system bring-up, and application-level debugging.

Recommended Use:

Evaluating FPGA systems that require DDR3 memory and a combination of video, high-speed I/O, and data acquisition interfaces.

Best For:

  • DDR3-based high-bandwidth FPGA designs
  • MIPI and LVDS interface evaluation
  • HDMI TX video output development
  • USB 2.0 communication testing
  • ADC-based data acquisition systems
  • FPGA functional verification and debugging
ドキュメントをダウンロード
User Guide DK_START_GW5A-LV25UG324_V2.0 User Guide ダウンロード
Schematic DK_START_GW5A-LV25UG324_V2.0 SCH ダウンロード
