DK_Motor_GW2A-LV55PG484C8I7_V3.0

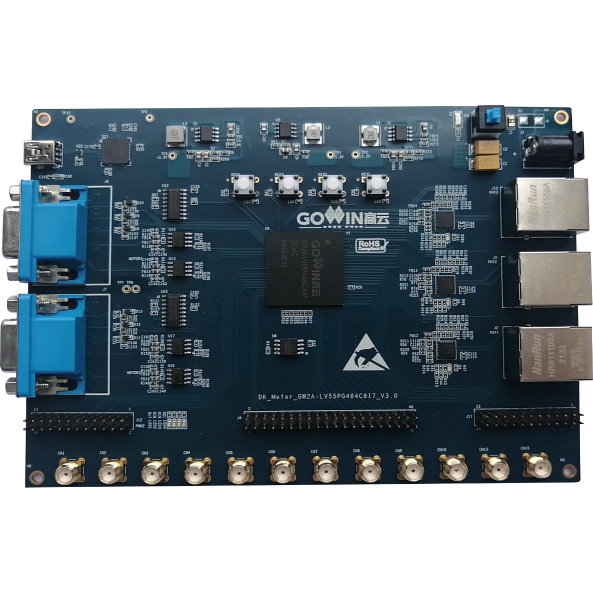

The DK_Motor_GW2A-LV55PG484C8I7_V3.0 is an industrial motor-control FPGA development board based on the GW2A Arora FPGA, designed for real-time control, industrial Ethernet communication, and motor-drive applications.
It integrates three 10M/100M Ethernet interfaces and a comprehensive set of control and communication interfaces, including ELVDS, PWM, PSMC, motor-control interfaces, and GPIO. An external Flash memory stores FPGA configuration data, while onboard keys and LEDs support system debugging and validation.
Recommended Use:
Developing and validating industrial motor-control systems that require real-time control logic and multi-port industrial Ethernet communication.
Best For:
- Industrial motor control and drive systems
- 10M/100M industrial Ethernet communication
- Real-time control and signal processing
- PWM- and LVDS-based control interfaces
- Hardware validation, debugging, and system testing
