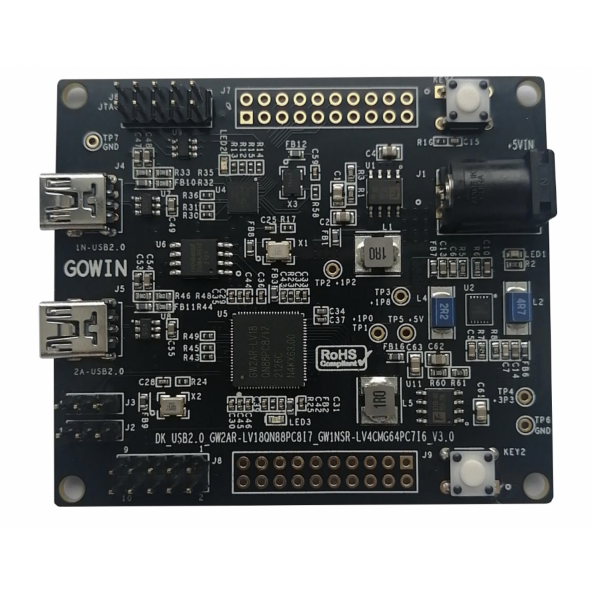

DK_USB2.0_GW2AR-LV18QN88PC8I7_GW1NSR-LV4CMG64PC7I6_V3.0
The DK_USB2.0_GW2AR-LV18QN88PC8I7_GW1NSR-LV4CMG64PC7I6_V3.0 is a USB 2.0 evaluation platform that combines a GW2AR FPGA with a GW1NSR SoC FPGA, enabling flexible USB, MCU, and FPGA co-design and testing.
The board supports USB 2.0 High-Speed (480 Mbps) and Full-Speed (12 Mbps) communication and leverages the GW1NSR’s embedded ARM Cortex-M3, USB PHY, PSRAM, Flash, and ADC, alongside the GW2AR FPGA’s high-speed logic and DSP resources, making it well-suited for validating USB communication stacks, hardware/software partitioning, and interface-intensive designs.
Recommended Use:
Evaluating USB 2.0 communication systems that require both MCU-based control and FPGA-based high-speed data processing on a single platform.
Best For:
- USB 2.0 (HS/FS) communication and protocol testing
- MCU + FPGA co-design using Cortex-M3
- USB interface validation and debugging
- Hardware/software partitioning experiments
- FPGA functional verification and system learning
